Item No. 130, Wet Filter for IGG Scrubber

Inert gas system is very important for liquid cargo handling ships. For years, we have been producing and supplying wet filter (knit mesh demister) used in the IGS scrubber. In one kind of typical IGG scrubber, the demister and wet filter are usually used together. The wet filter is located in the upstream of gas flow, while the demister is in the downstream.

IGG Scrubber Wet Filter Sizes

Outer Diameter (mm) Inner Diameter (mm) Thickness (mm)
892 × 316 × 200, or as per order
1292 × 406 × 200, or as per order
1492 × 458 × 200, or as per order
1792 × 600 × 200, or as per order
1992 × 610 × 200, or as per order
…… × …… × 200, or as per order

The wet filter material can be 316L, 2205, 2507, etc. The scrubbers from different manufacturers may have different data in diameter. For more sizes and material options, please feel free to contact us any time!

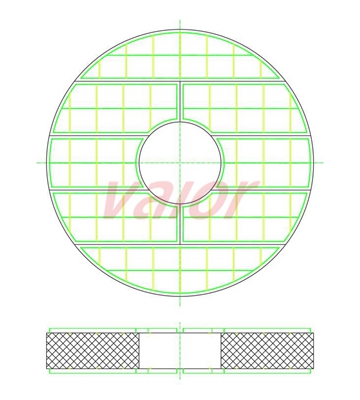

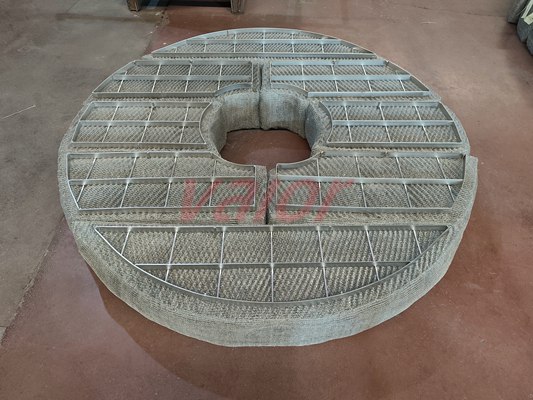

A 1492×458 wet filter drawing. → A wet filter demister with outer diameter 1492 mm.

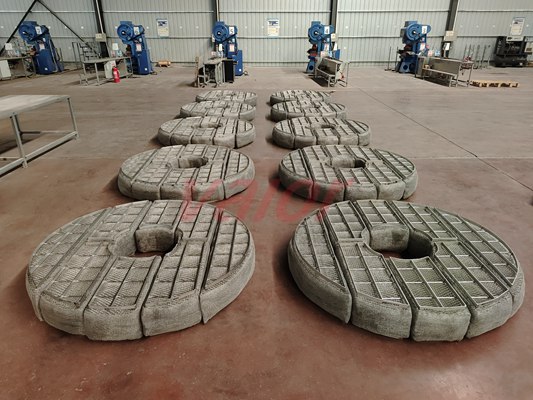

Donut-shape demister used in sea vessel scrubber upstream. → 10 sets of IGG wet filters are ready in Hualai factory.

Welcome to contact Mr. Li An for FREE drawing support and more details!
