Application Examples of Wojun Demister, Tower Packing and Tower Internals (2):

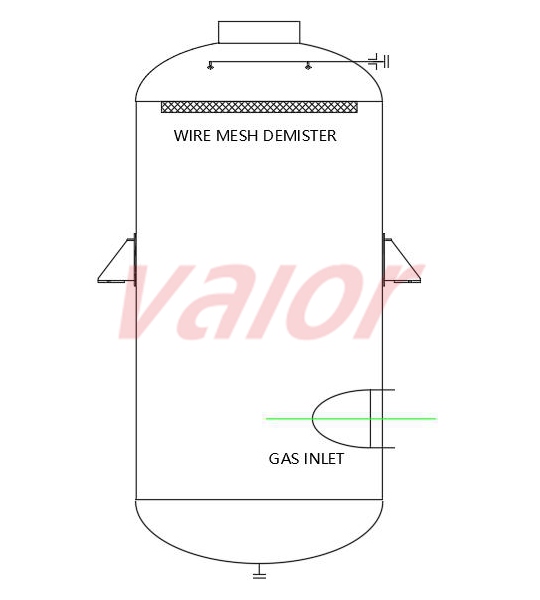

A simple sketch only to show the relative position of wire mesh demister in falling film evaporator separator.

Falling Film Evaporator Separator

It usually requires a wire mesh demister made of 2205, 2507, TA2, or Hastelloy materials.

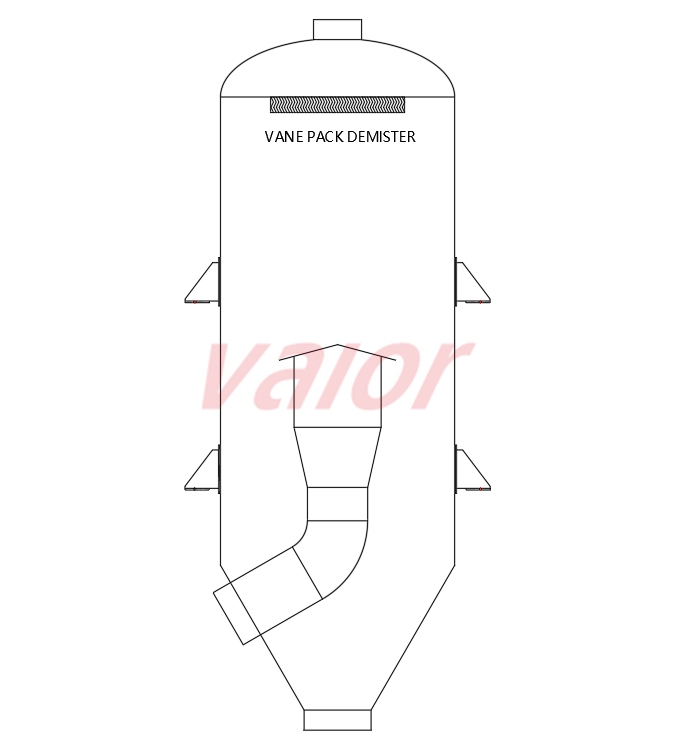

A line sketch of a crystallization separator which uses vane pack demister.

First Stage Crystallization Separator

A set of customized vane pack demister is typically mounted near the top of the vessel.

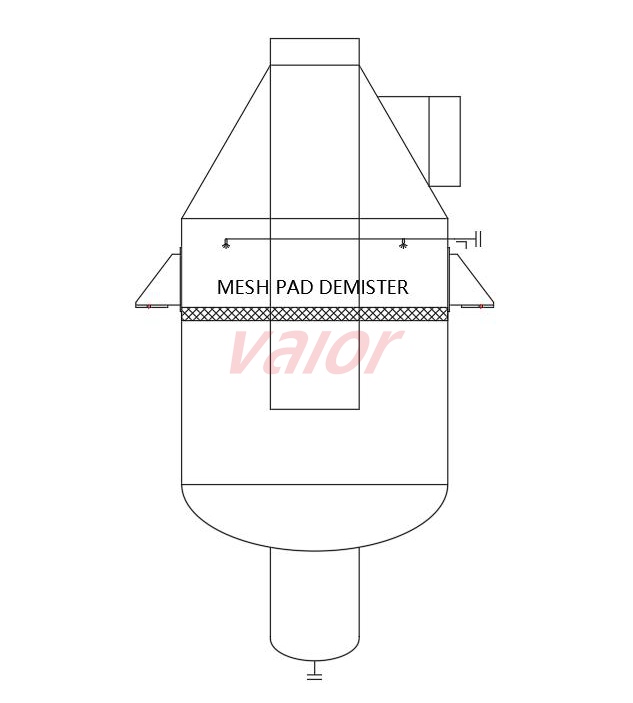

Line sketch of a secondary crystallization separator equipped with a mesh pad demister.

Secondary Crystallization Separator

A donut-shaped mesh pad demister designed to fit the central gas outlet pipe.

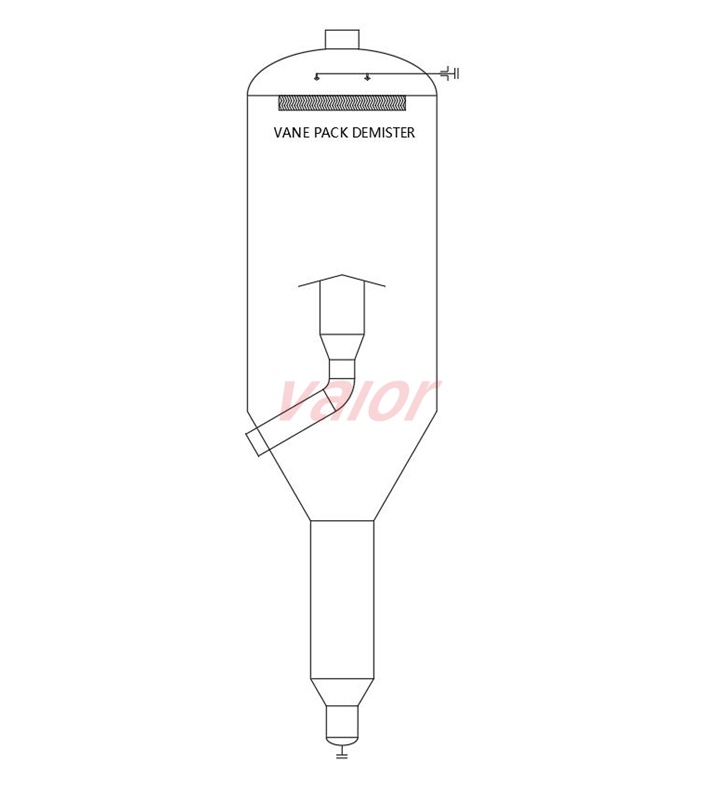

Low-temperature evaporative crystallizer needs chevron plate demister sometimes.

Low-Temperature Evaporative Crystallizer

Chevron Mist Eliminator is used in this equipment sometimes.

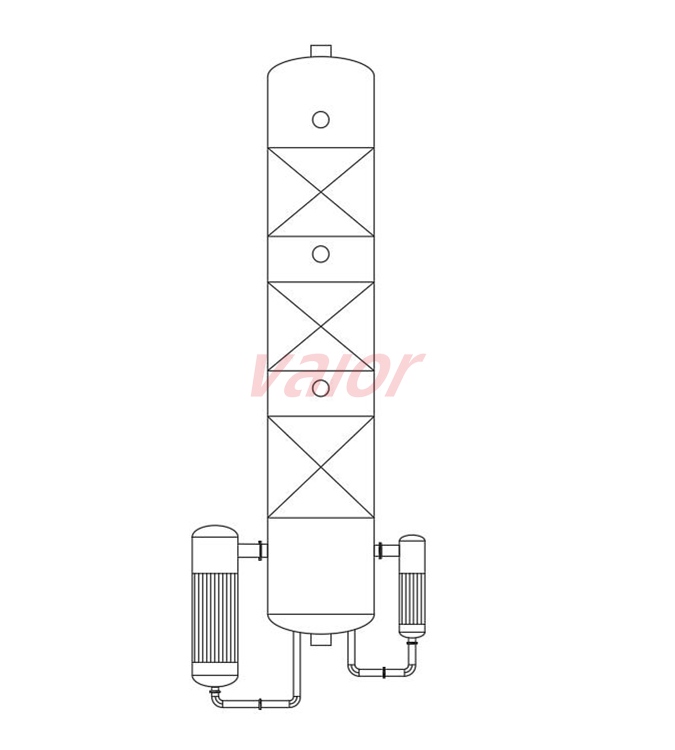

Line drawing of industrial chemical reaction tower structure.

Reaction Tower

It is used in industrial processes such as synthesis, decomposition, and neutralization, and is widely applied in industries including petrochemicals, fine chemicals, and pharmaceuticals.Wojun Tower Packing & Internals.

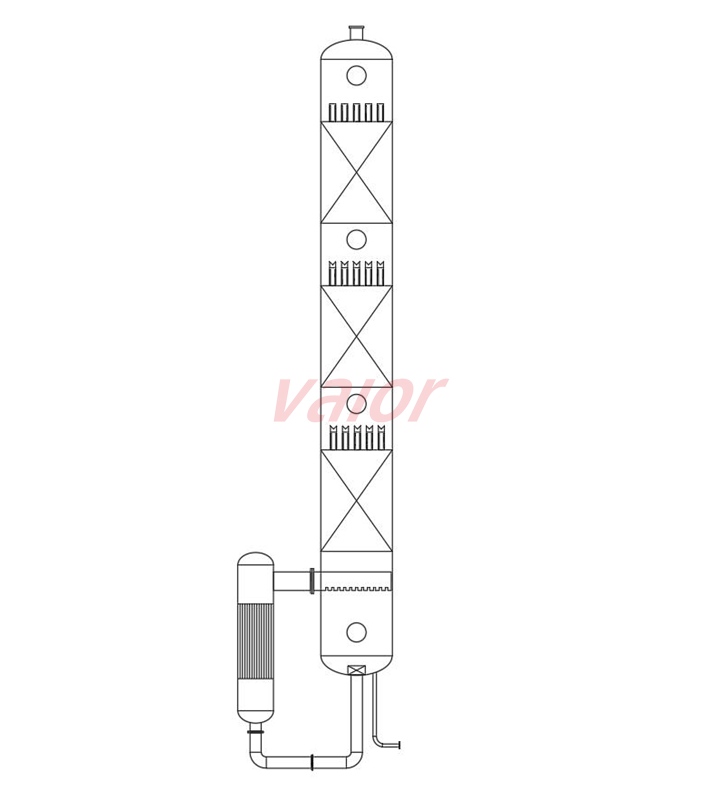

Industrial line drawing of crude separation tower for material pretreatment.

Roughing Tower

In this primary fractionation tower, you may needmetal pall rings and gas-liquid distributor.

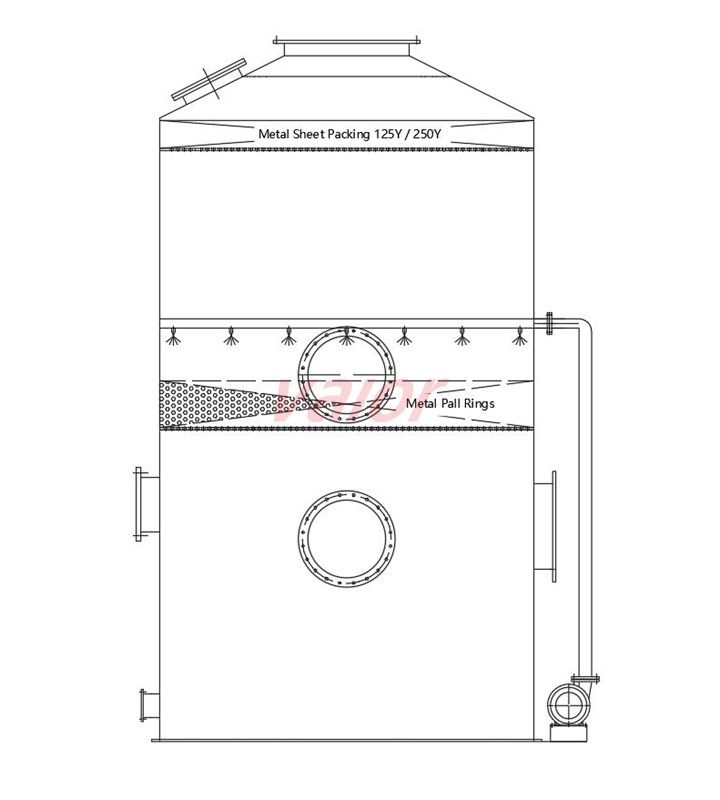

A sketch of stainless steel wet dust removal tower showing application of Wojun tower packing.

Wet Dust Removal Tower

In dust control application, metal sheet structured packing is also used as mist eliminator.

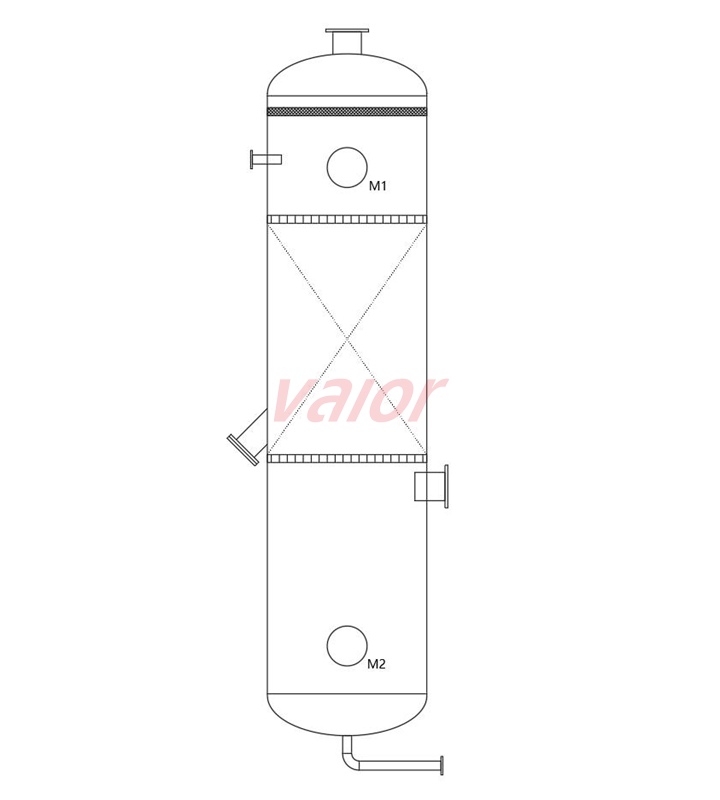

The caustic scrubber vessel is used to wash the acid gas-bearing.

Acid Gas-Bearing Alkaline Washing Vessel

We supplied knitmesh demister for such kind of tower.

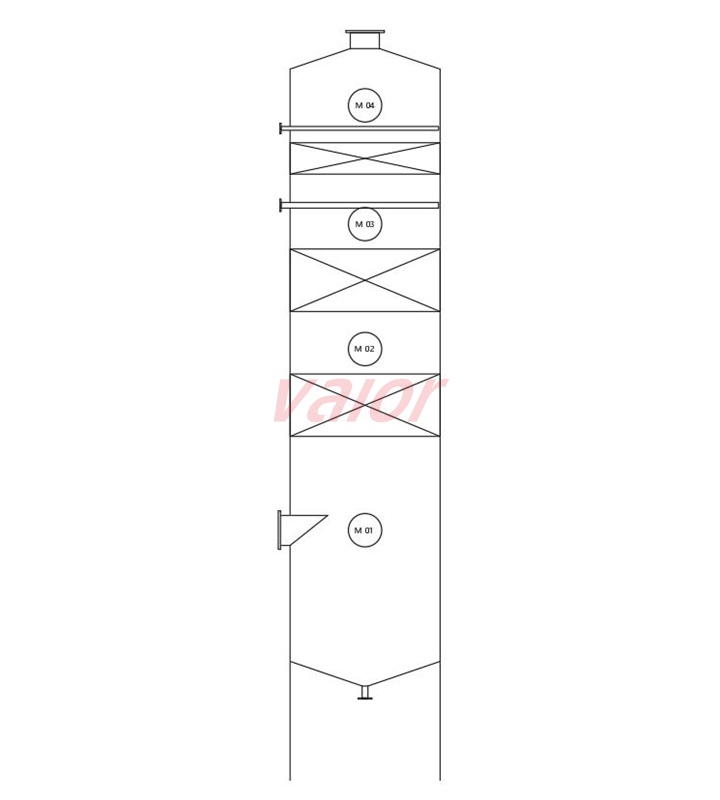

The large coking oil scrubber is used to remove tar and impurities from coking gas.

Large Coking Oil Washing Column

There are several packing beds of corrugated perforated metal plate structured packing from Wojun factory.
