Application Examples of Wojun Demister, Tower Packing and Tower Internals (1):

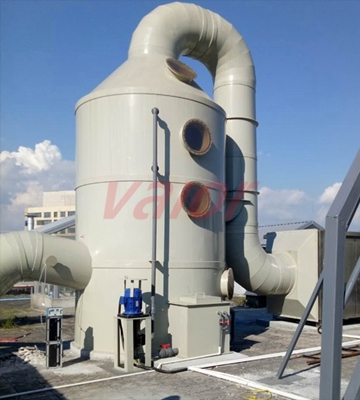

Wet scrubber collecting dust and impurities from industrial emissions.

Wet Scrubber

This type of wet scrubber / gas washing tower will need Wojun annular demister.

Simple line drawing of distillation tower with stripping and rectifying sections.

Distillation Column

Liquid distributors and tower packing are usually needed in a distillation column. Sometimes a demister is also seen near the top position.

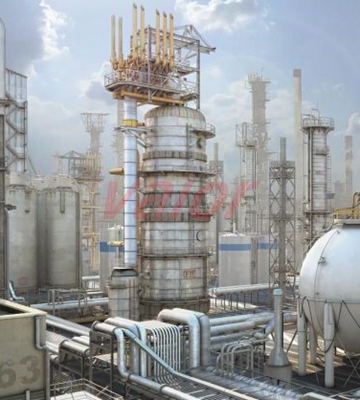

Industrial absorption tower used for removing pollutants from exhaust gases to protect the environment.

Absorption Tower

Absorption tower removes pollutants from exhaust gases to protect the environment.
Find more details on Chevron Demister, Mesh Demister and Tower Packing.

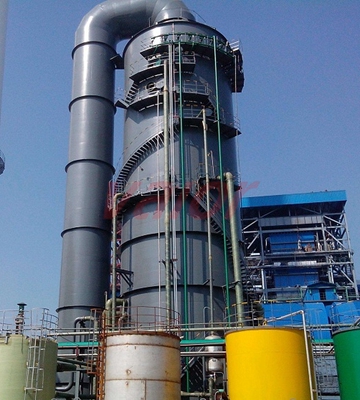

Industrial desulfurization tower functioning to reduce sulfur emissions in power plants.

Desulfurization Tower

Desulfurization tower reduces sulfur emissions in power plants.

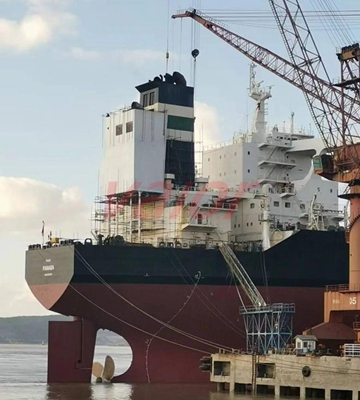

Exhaust Gas Cleaning System used on sea ships.

Ship EGCS

EGCS (Exhaust Gas Cleaning System) purifies vessel emissions. Different scrubber suppliers have different internal plans, like 316L wire mesh demister, chevron fins demister, 2205 structured packing, TA2 pall rings, etc. More material options are PP, 2507, SMO254, etc.

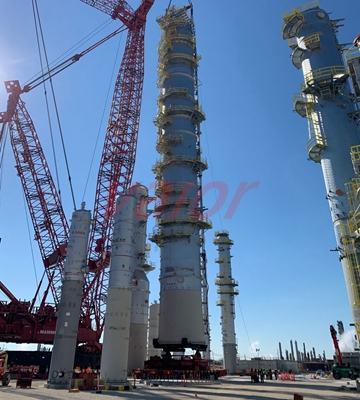

An industrial packed tower designed to remove contaminants from a gas stream for environmental compliance.

Packing Tower

Except for various kinds of tower packings, demister is also popular in such device.

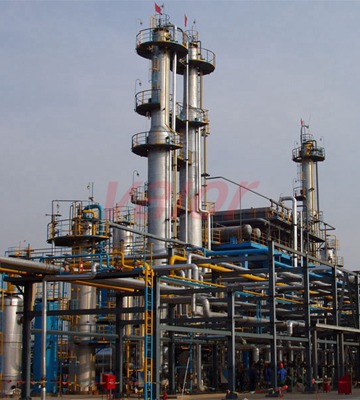

A stripper column using steam stripping to drive off low - boiling components from liquid streams in the pharmaceutical industry.

Stripper Tower

Stripper tower is widely used in chemical, petrochemical and wastewater treatment industry.

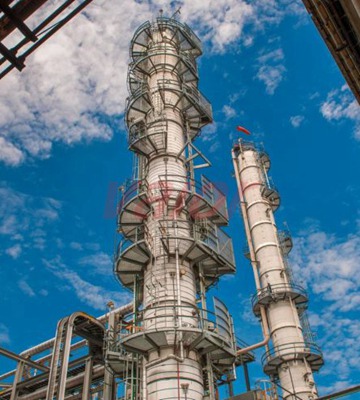

A rectifying tower separating different boiling - point substances in a chemical mixture to obtain high - purity products.

Rectifying Tower

Wire mesh demister is utilized in rectifying tower to effectively eliminate liquid mist.

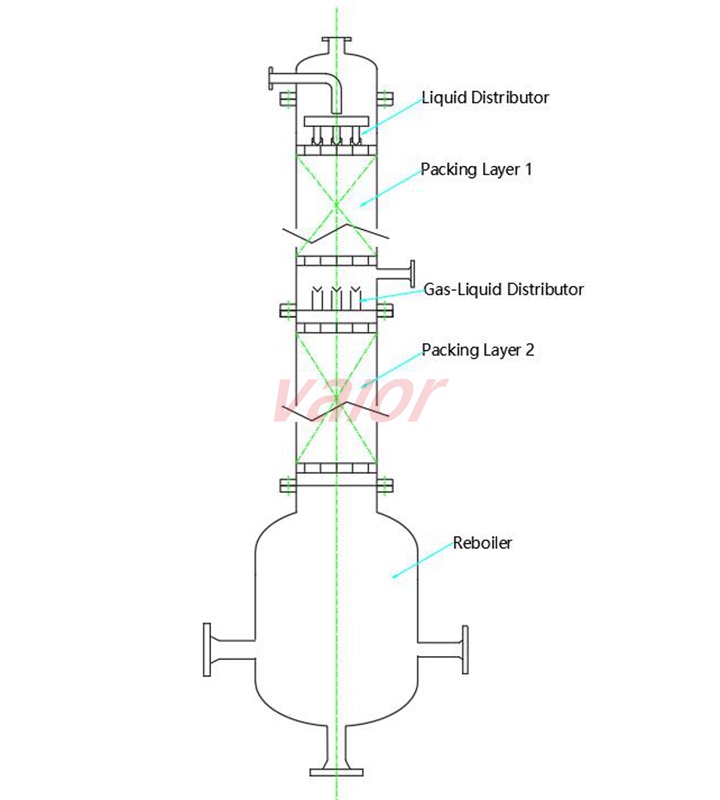

A simple sketch of a stabilizer tower, showing the column packing layers and distributors.

Stabilizer Tower

Heibei Wojun produces liquid distributors, tower packing and its supports for stabilizer tower.
